Jiangling Holding Welding Conveyor Line

First, the customer name:

Jiangling Holdings Co., Ltd.

Second, the project profile:

1. Scope of supply: welding equipment to the coating factory (WBS), the body line to the main line temporary storage, the main line to adjust the line transmission, the body adjustment line, etc., including design, production, installation, commissioning

2. Project introduction:

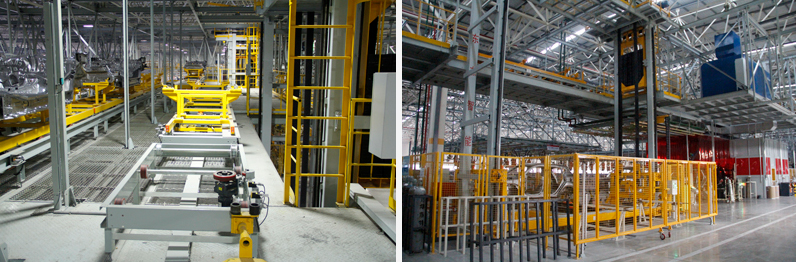

Jiangling Holding Welding Conveying Line includes: welding equipment to the coating factory (WBS), the main body line transfer line, the main line to the adjustment line, the body adjustment line. The main mechanical equipment includes elevators, stacking and unloading, fork transfer, steel platform on the second floor of conveying equipment and hanging steel platform. The conveyor line is equipped with CS control system, AVI information system, real-time monitoring system, body scheduling, fault alarm and other functions. Complete the functions of conveying, transferring, storing and sorting the body in white.

The main parameters:

Production capacity: 100,000 units

Product: The production line passes the maximum body-in-white size: L×W×H: 4439×1850×1600 (mm)

The workshop production line passes the maximum body-in-white weight: 500Kg/set.

Production program: 30JPH, 3 shifts; year-round work, 21.5h per day

Production mode: continuous through production line

Conveyor line form: friction roller bed, belt type trampoline
