Jiangling Holdings painted pendulum conveyor line

First, the customer name:

Jiangling Holdings Co., Ltd.

Second, the project profile:

1. Scope of supply: pre-treatment, electrophoresis pendulum and front and rear entrance and exit rolling beds, including design, production, installation and commissioning

2. Project introduction:

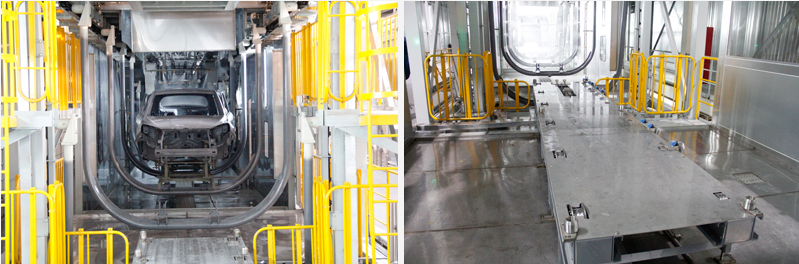

Jiangling Holding's painted pendulum conveyor line includes: pre-treatment, electrophoresis pendulum and front and rear entrance and exit roller beds. The conveyor line is equipped with CS control system, real-time monitoring system, fault alarm and other functions.

The main parameters:

Production capacity: 100,000 units

Product: The production line passes the maximum body-in-white size: L×W×H:

4500 (open door 4800) × 2000 (open door 2200) × 1500 mm

The workshop production line passes the maximum body-in-white weight: 500Kg/set.

Production program: 30JPH, 3 shifts; year-round work, 21.5h per day

Production mode: continuous through production line

Conveyor line form: swing chain, skid roll
