Warehouse system of Tianjing Otsuka Pharmaceutical Co., Ltd.

First, Client Name:

China Otsuka Pharmaceutical Co., Ltd.

Second, Project Overview:

1. Scope of supply: Engineering design, manufacturing, installation and commissioning of an automated 3D warehouse system.

2. Project Overview:

China Otsuka realizes the functions of automatic packaging, stacking, warehousing, storage and inspection of finished products through automatic equipment.

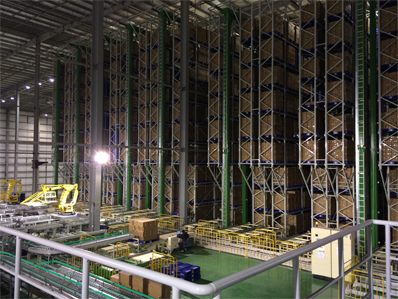

From the end of the production line, the carton is transported to the second floor of the 3D warehouse by a robot, and then transported to the tunnel entrance by the pallet conveying line for storage operation. The re-inspection process is set up on the second floor of the warehouse, and the re-inspection products are taken out from the shelf by the stacker to the roadway entrance, and then transported by the pallet conveyor line to the re-inspection and unpacking station (which can satisfy 100 people working at the same time). The cartons are transported to the re-inspection area through the re-inspection box conveyor line to complete the re-inspection, sealing box, weighing and carrying, and so on. Out of the warehouse, picking out and out of the warehouse by the three-dimensional warehouse a layer of pallet delivery line and stacker completed.

3. Project parameters

(1) Storage: 38260
(2) Height: 23.8 meters
(3) Stacker: 20 sets
(4) Load: 800 kg
